0 Harga Terbaru Evercoss Winner Y Selfie, Spesifikasi Kamera Depan 8 MP

By Gadget News | At 1:52 AM | Label : Handphone | 0 Comments

Harga Terbaru Evercoss Winner...

Jika anda ingin membaca artikel ini lebih lanjut, silahkan klik link Judulnya atau kunjungi http://nyarihape.com , Terimakasih

0 Harga Terbaru Evercoss Winner Y Smart, Spesifikasi RAM 2 GB Dibawah Sejutaan

By Gadget News | At 6:06 PM | Label : Handphone | 0 Comments

Harga Terbaru Harga Evercoss...

Jika anda ingin membaca artikel ini lebih lanjut, silahkan klik link Judulnya atau kunjungi http://nyarihape.com , Terimakasih

0 Intempo Reverb Retro Classic Bluetooth Speaker

By Gadget News | At 3:57 AM | Label : gadget | 0 Comments

0 Harga HP Evercoss Winner X Glow, Spesifikasi RAM 1 GB Sejutaan

By Gadget News | At 6:26 PM | Label : Handphone | 0 Comments

Harga HP Evercoss Winner X...

Jika anda ingin membaca artikel ini lebih lanjut, silahkan klik link Judulnya atau kunjungi http://nyarihape.com , Terimakasih

0 How To Setup mcThings Platform With mcModule To Track Temperature/Voltage Via Losant Dashboard

By Gadget News | At 1:07 AM | Label : gadget | 0 Comments

The exciting part of any IoT solution is tinkering with the hardware and software and make it work! On this part 2, I'm setting up the mcThings platform to gather up information and stream it live via a IoT cloud dashboard application such as +LosantHQ

In order to integrate mcThings with Losant to read temperature and voltage data, you need at least a mcModule, a mcDongle, a mcGateway, a USB stick, coin cell CR2032 batteries, two micro USB data/power cables and mc-Studio IDE software (free to download).

The USB stick is needed for updating the application processor of the mcGateway; while the micro USB power/data cables are needed for powering and transferring data, as well as for updating the mcDongle and the mcGateway board. Here are the steps:

1) Sign up with Losant to create an account

2) Create a New Application



3) Create new device

4) Select Start from Scratch

5) Create a Gateway (you can call it any name you like)

6) Create a Peripheral (you can call it any name you like) and then select the name of the Gateway you created in step 5.

7) Download mcStudio from http://ift.tt/2lpfYGN (make sure .NET Framework 4.6.2 is installed on your computer)

8) Connect the mcGateway to your WiFi network. You can do this by using an ethernet cable to connect the mcGateway to your router. You ou can connect also via WPS WiFi pairing, or via the mcStudio IDE.

mc-Module 110 on far top of the board

9) Update firmware for mcModules and mcGateway. Head again to http://ift.tt/2lpfYGN and download these below:

10) Open mcOTA, click "Search Device" and then insert the coin battery in the mcModule. Once the device information appears, click Start Update.

Wait until message reads Firmware upload complete

11) Repeat the same process above for updating the mcGateway. You’ll need to update both the host module on the gateway and the application processor. The host is updated using the mcDongle and the mcOTA application and the processor is updated using USB.

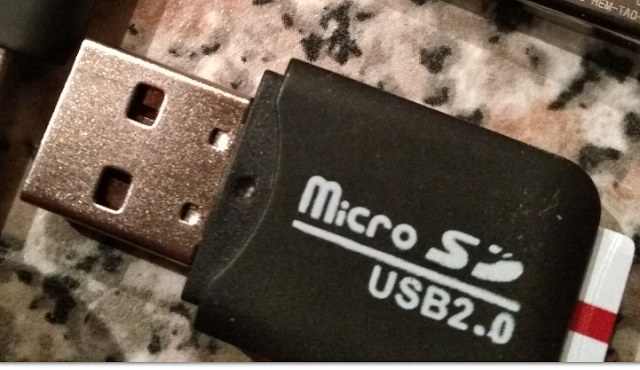

When updating the mcGateway's application processor, make sure your USB stick is formatted using FAT32, and place the “mcGw110.bin” file in the USB stick without chaging the name of the file from “mcGw110.bin”

Before inserting the USB stick into the mcGateway board, disconnect the power/data cable from the mcGateway and insert the USB stick. Then, reconnect the power cable and hold down both buttons (RESET and USER SW). The flashing green LED on the mcGateway board will show solid green for a few seconds, indicating the application software is being updated. when the green light starts flashing again, the application processor updating process has completed.

12) Connect the mcGateway to your PC and click Connect Gateway

Create new project

Add TempSensor library

For Temperature and BatteryVoltage, I enter the following code. You can get the code here

Once the code is entered, Save, Build and Load

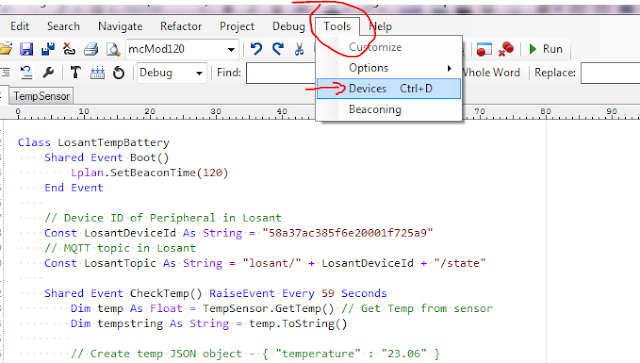

13) Now, go to "Device Maintenance and Connection". To get there select Tools -> Devices

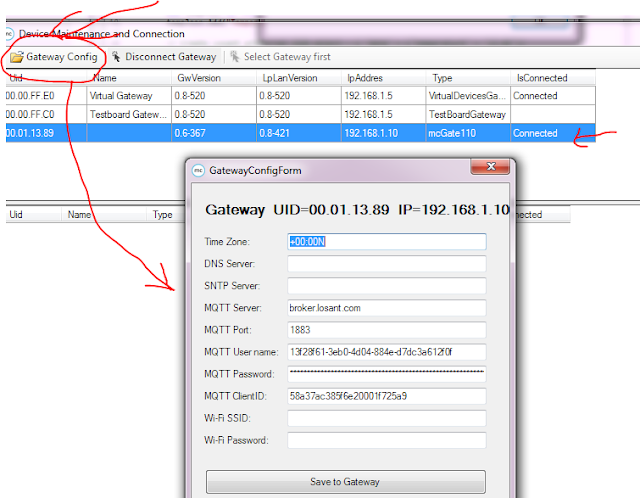

Then, connect mcGate110 and select Gateway Config to bring up the GatewayConfigForm and enter the following details:

MQTT Server: broker.losant.com

MQTT Port: 1883

MQTT Username: Your Losant Access Key

MQTT Password: Your Losant Access Secret

MQTT ClientId: This is the Device ID of the gateway you created in Losant.

To obtain the access keys from Losant, go to Applications->Access Keys

14) Once the above is correctly set up, you should be able to refresh and get a Connected message from the Losant dashboard..



15) Now, we are ready to create a widget from the Losant dashboard to visualize the data. In this case, temperature and battery voltage. First, we create a dashboard


Then, select a Block. In my case, I selected GAUGE

Enter the information applicable to you. Choose an Application, Gauge Type, Precision Type, Duration, all can be set how you like. Device IDs / Tags (enter the device module you created). For Label and Attribute you must enter Celcius and Temperature.


To visualize BatteryVoltage, simply enter "Voltage" under label and select "BatteryVoltage" under attribute.

0 Luxafor Flag Office Busy/Work USB Light Indicator!

By Gadget News | At 2:47 AM | Label : gadget | 0 Comments

Productivity is the name of the game and what better and cost-effective way to maintain and/or increase productivity than with an electronic assistant?

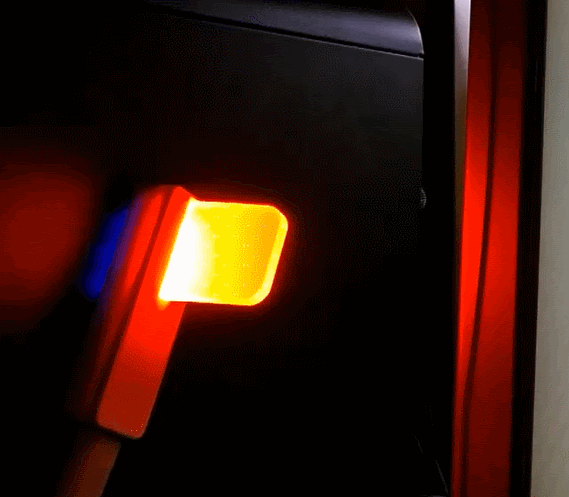

Luxafor Flag is a tiny nifty gadget designed to prevent drops in productivity and improve workflow as well as communication without interruptions.

Luxafor Flag LED indicator lets you control your work day by productively plan your day via light notification reminders. Luxafor Flag is literally designed in the shape of a flag and features a magnet that allows you to stick the Luxafor Flag on any magnetic surfaces such as computer towers or laptops.

Luxafor Flag has built-in RGB LEDs that allows you to experiment with a multitude of colors and color combinations.
Right out of the box, you already get cool pre-set color combinations such as Police lights and traffic lights.

Luxafor Flag features a micro USB port and six LEDs that shine brightly through a small acrylic piece of plastic. The total height of Luxafor Flag is 34 mm.

Luxafor Flag is 48 mm long, 15 mm thick and weighs only 8 grams, Luxafor Flag is very compact (the size of a AA battery)

As far as functionality, Luxafor Flag is very easy to use. Simply plug in the included micro USB cable and hook it up to your PC or laptop. Drivers will automatically install.

Then, head to Luxafor website to download the Luxafor software for Windows PC (7, 8, 8.1 and 10) or MAC computers.

Once the Luxafor software is installed, you'll be presented with the below dashboard that allows you to customize the LED color indicator, as well as functionality.

Luxafor menu options include: Skype Business

Pomodoro Time

Timer

Hotkeys

Desktime

E-mail configuration

If you are familiar with the Pomodoro Technique, Luxafor Flag's Pomodoro Time works the same so it allows you to time manage your time by breaking down work into intervals, separated by short breaks.

The brightness of the Luxafor Flag can be adjusted, from low to high, for every option, which is great.

With the Luxafor Flag, you get a micro USB and instructions telling you a bit more about Luxafor, what it is and how it works.

Luxafor software is open source, which means Luxafor hardware API allows you to control the device through your own applications.
